Rubber tile making machine
Features of Rubber tile making machine
1. Rubber tile making machine is used to make various types of
floor tiles with different diamter as you required. With one set
Vulcanizing machine, we can make many types tiles only by changing
the moulds.
2. This kind machine has three different types, frame type, pillar
type and jaw type. It is high efficient with large output,
automatic controling, easy operation and safety guaranteed.
3.The working layer can be designed as customer's request, 2, 4, 6,
etc
4. We can customize the moulds according to your special
requirments.
5. We have got CE, ISO, SGS.
Specification of rubber tile making machine:
XLB-550×550×4/0.50MN: |
Clamping Force (MN) | 0.50 |
Size Of Heating Plate (mm) | 550*550*40 |
Distance Between Heating Plates(mm | 150 |
Working Layer No. | 4 layer |
Unit Area Pressure Of Hot Plate (MPa) | 26kg |
Motor power(kw) | 3KW |
Control Mode | Automatic |
Maximum Working Temperature(°C) | Electricity Mode 200°C |
Structure | Four-Column Type |
Up And Down Speed (mm/s) | When Up 15 / When Down 20 |
Dimension Of The Press (mm) | 2200×900×2200 |
Weight (Kg) | 2700 |
Molds

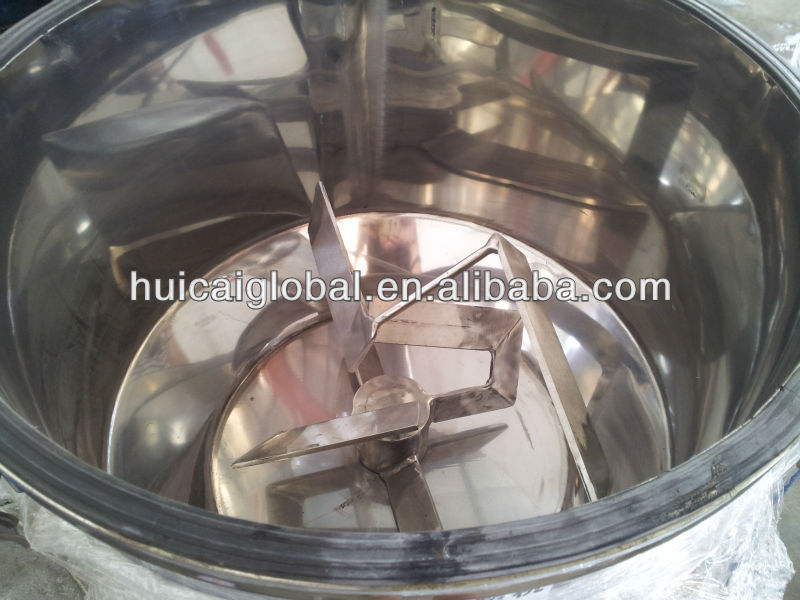

Mixer
Flow chart of rubber tile making machine
Mixing: Pour the rubber granules and coloring pigment into the rubber
mixing machine, with some adhesive, then begin stiring. It will
take 4-6 mins to be done.
Weighing: weigh the stirred rubber powder according to the floor tiles
thickness you want to make.
Paving and Pressing: pour the needed quantity rubber powder into the mould, and float
it by trowel. On the bottom , can be with some coarse and black
rubber powder, but on the surface should be with fine and colored
powder, it can ensure your tiles quality.
Vulcanization Moulding: Put the mould on the vulcanizer layer, generally , it take 3-8
mins to make the tiles, time difference based on the thickness of
the tiles you ready to make. After finished, it will automaticlly
separated, then put it somewhere to dry.
Inspecting: Inspect the tiles' surface . If no aberration, no flaw, then it
is of high quality products.

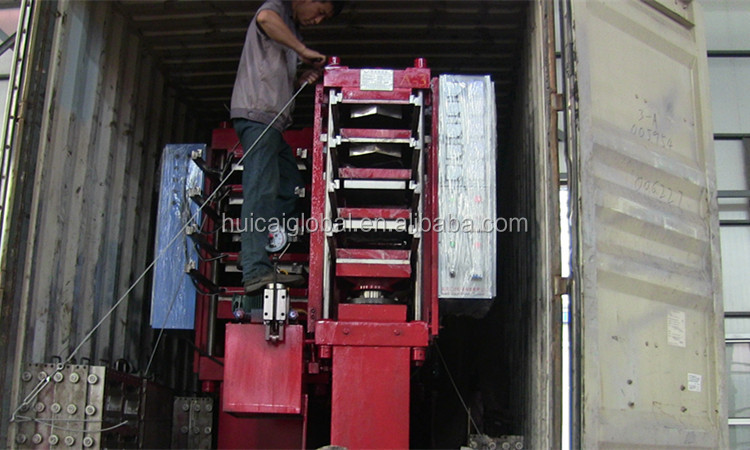

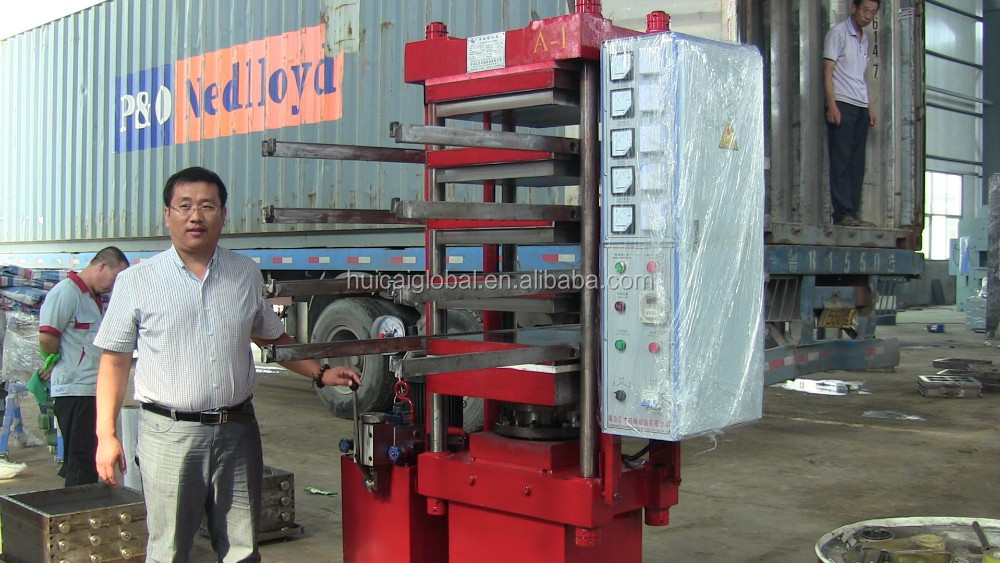

Vulcanizing machine:
Our Services
Our Services:
1. Pre-sales Service:
Freely provide project designing, Professional suggestions, Quicky
Response!
2. Medium-sales Service:
Accompany you to complete the purchasing, shipping, installing and
training
3. After-sales service:
2 year quality guarantee, Life-long Maintenance, Eneineer is
avaliable to go overseas install and train your workers.

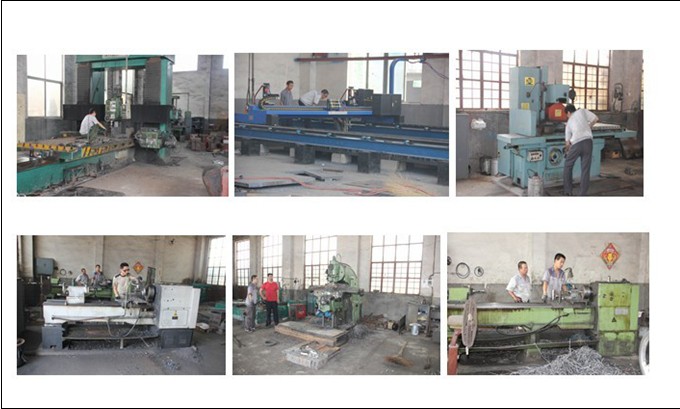

Welcome to visit our factory!
