This machine is suitable for reclaimed rubber plants, transmission
belt factory, conveyor belting factory, rubber products factory,
shoe factory,cable factory, rubber hose factory, seals and rubber
related industry.It is mainly used for the mixing of natural rubber
or reclaimed rubber after desulphurization to mixing ,plastic
refining and tablet.
The feature of rubber open mixing mill.
1.The roll adopts the vanadium titanium metal alloy chilled cast
iron and its surface is hard and wear-proof. The internal cavity is
processed to make temperature well proportioned on the roll
surface.
2. The machine is equipped with an overload protection device to
prevent the main components from being damaged.
3. The machine is also equipped with an emergency brake device.
When an emergent arises, just draw the safety pull rod, and the
machine will stop immediately. It is safe and reliable.
4. The transmission system adopts a hardened tooth-surface reducer,
which has a compact structure with higher transmission efficiency,
lower noise and longer service life.
5. The base frame is a whole framework, which is convenient for
installation.
6. Stock bender for direct rubber sheet and knife to cut as your
need to assemble.
7. Auto-lubrication sysytem for greese or oil and match bearing
bush.
Two roll open mixing mill
There are nylon/ copper sheathing / bearing type you could choose
There are dry oil lubrication and thin oil lubrication you could choose
There are ZQ reducer and Planetary reducer you could choose
Features of two roll rubber mixer:
Rubber Machine & Rubber Machinery
1)Tailored structure, easy to operate.
2)There are many speeds and speed ratios available, which can
satisfy most customers’ formula and processing requirements.
3)Frame, frame cap and base, looking very nice, are welded and
treated by annealing for stress relieving.
4)Chilled alloy cast iron roll is abrasion resistant with long
service life.
5)The speed reducer is the hard-tooth surface gear reducer of Class
6 precision, which has long service life and low noise.
6)terials of Rolls :Cast iron alloy (LTG-H), after quenching and
precision processing,hardness HS,68~75.
7)in bearing : Dual-listed rolling bearings, which reduces energy
consumption by 30%.
8)ll gap adjustment : electric automatic
9)tor: Frequency control of motor speed
10)ducer: Airtight leaching oil type, ZSYE reducer (There are a
variety of choice, the price is different), Almost no noise, safety
Handle safty
1.Electrical protection: When the equipment overloading, equipment
parking.
2. roller safety device: when the device instantly over the
pressure of the roller, the insurance for the safety film sit
automatically paragraph crack. To protect the rollers and other
major parts (XK-400 is no such device) to make the machine run more
reliable and maintenance costs to a minimum.
3. machine equipped with a brake device, in case of emergency, pull
the safety lever to immediately brake, thereby reducing the
occurrence of the accident.
Type | XK-150 | XK-250 | XK-300 | XK-360 | X(S)K-400 | X(S)K-450 | X(S)K-560 |
Working diameter of rolls (mm) | Ø150 | Ø250 | Ø300 | Ø360 | Ø400 | Ø450 | Ø560 |
Working length of rolls (mm) | 320 | 620 | 750 | 900 | 1000 | 1200 | 1530 |
Working linear speed of front roll(m/min) | 8 | 15.1 | 15.1 | 16.25 | 18.65 | 24.5 | 27.7 |
Max gap (mm) | 10 | 10 | 10 | 10 | 15 | 15 | 15 |
Capacity per.batch(kg) | 1-2 | 10-15 | 15-20 | 20-25 | 18-35 | 25-50 | 50-65 |
Driving motor power(kw) | 7.5 | 18.5 | 22 | 30 | 37 | 55 | 95 |
Overall dimension (mm) | L | 1080 | 3400 | 3580 | 3940 | 4250 | 5200 | 6120 |
W | 796 | 1350 | 1550 | 1780 | 1850 | 2380 | 2280 |
H | 1415 | 1500 | 1695 | 1740 | 1870 | 1770 | 2000 |
Weight (kg) | 1100 | 3500 | 5205 | 5670 | 7600 | 13000 | 22000 |
Notes | Bearing | Nylon bush grease LUB Copper sleeve oil LUB | Nylon bush grease LUB |
We are professional manufacturer of machinery
About us--
Qingdao HUICAI Machine Manufacture Co., LTD.
Electric Technology
Simen PLC ,PC

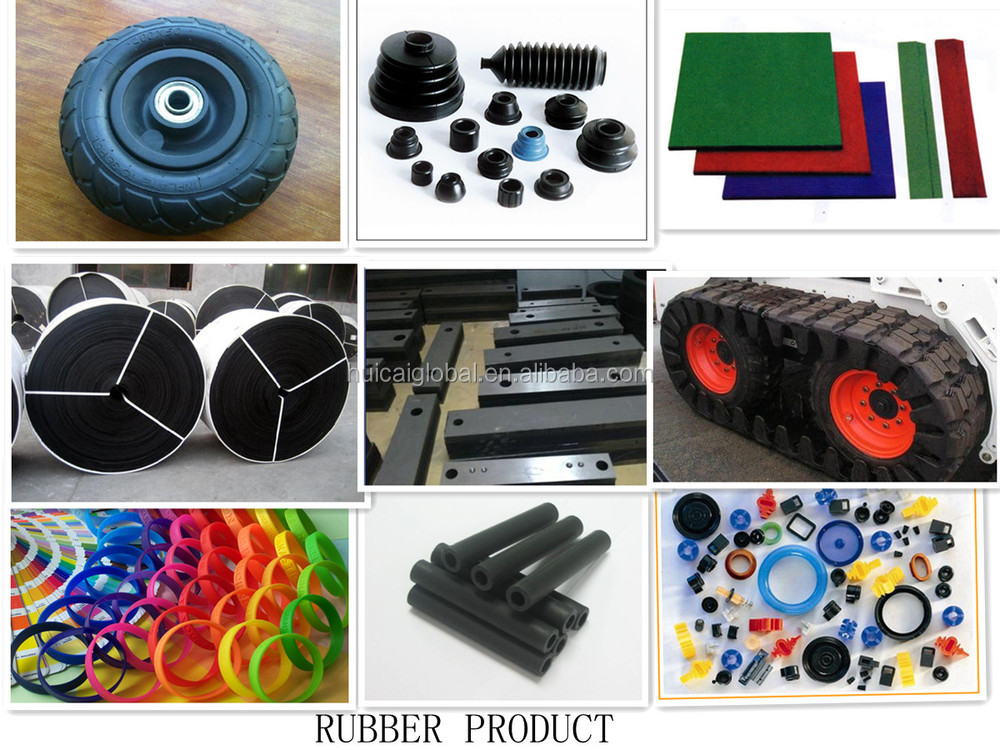

Product Uses
Rubber mat , rubber tile , rubber ball , hose,rubber hose ,rubber
brand ,rubber stopper
Packaging & Shipping
1, 40-50 working day
2, plywood case, or plastic covered
3,simple packing
4 according to customer
5,channel steel fixed at the bottom and covered with waterproofer
sheet. Design as request Suit to long distance transport
About Us:
We are a successful manufacturer and foreign trade company that has
a good reputation of providing our customers with the best service
and online buying experience in the business. Please feel free to
email us or call us . Your email
will be appreciate and we reply you as soon as possible.
Notice:
we can accept FOB,CIF,CFR,EXW,etc.
Payment Item:30%TT in advance,70% balance before shipment.
Delivery Time:usually 20-30 days after recieving the
deposit,customize model depends on detailed parameter
Packing:bare packing, some parts are packed in wooden case.
Import duties, taxes,charges,and all the things to clear the custom
are not included in the item price or shipping charges.These
charges are the buyer's responsibility.
Please check with your country's customs office to determine what
these additional costs will be prior to bidding/buying.
If the items are damaged and lost during the shipping, we are not
responsible of that. Please contact the shipping company.
You also can ask us to buy the insurance for you. Thank you for
your cooperation.
After-Sales Service
one year guatantee for whole machine
24 hours technical support by email or call
calling or door-to-door service
Use English software, manual and detailed videos/CD
