♦Application:
The filter Rubber raw material enters the rolling mill to filter
away impurities such as scrap iron, stones, etc.to ensure the
safety of the roller of the rolling mill. In the process of
rolling,the threshing of the screw rod promotes the uniform
plasticization of the rubber,and cool perservation by water can be
adopted for stablizing the process.
♦Features:
♦Screw made of special steel is with nitrogen treatment,durable.
♦Jacketed type barrel can be cooled for cooling the rubbers
effectively.
♦Double head strainer to be quickly and easily exchanged.
♦Smoothly running and high output.
♦Equipped with die-head auto opening system when electric power is
cut off.
♦The main technical parameters:
| Type | HBXJ-65 | HBXJ-85 | HBXJ-115 | HBXJ-150 | HBXJ-200 | HBXJ-250 |
| Form of screw&screw thread | Double-head equaldpth convergent type | Double-head equidistant unequaldepth tpype | Double-head convergent type | Double -head unequaldepth convergent type | Double-head convergent type | Double-head convergent type |
| Screw diameter(mm) | 65 | 85 | 115 | 150 | 200 | 250 |
| Length-diameter ratio of screw | 4 | 4.3 | 4.8 | 4.43 | 4.35 | 4.5 |
| Compression ratio | | 1.3 | 1.3 | 1.34 | | |
| Screw rational speed(r/min) | 20/2735/47 | 28/40/56/80 | 33/46/60 | 27-81 | 22.4-67.2 | 19.7-59.1 |
| Motor power(KW) | 7.5 | 10/14 | 22 | Frequency control 18.3-55 Moter | Frequency control 25-75 Moter | Frequency control 33.3-100 Moter |
| Production capacity(kg/h) | 50-80 | 62-270 | 100-420 | 700-1200 | 2200 | 3500 |
| Stream pressure(Mpa) | 0.3-0.4 | 0.4-0.6 | 0.4-0.6 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Cold water pressure(Mpa) | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.4 | 0.2-0.4 |
| Compressed air pressure | | | | | 0.6 | 0.6 |
| Size(LXWXH)(mm) | 1630x604x1050 | 2050x700x1200 | 1630x604x1050 | 3411x814x1470 | 4564x1800x1750 | 4950x1150x1483 |
| Weight(kg) | 1200 | 2500 | 3000 | 5000 | 7300 | 11400 |

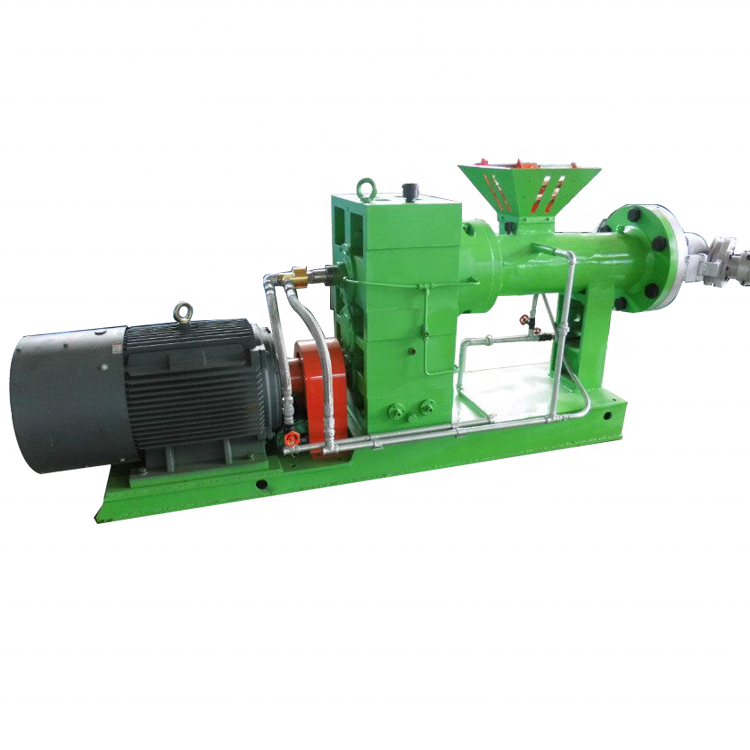

♦Machine Pictures:
♦Product Pictures:
♦ Company Information :
(1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in 1996;
(2) 100% of the factory, to meet all your requirements;
(3) CE, ISO9001 certification;
(4) a one-year warranty and long-term technical support;
(5) supply of all kinds of rubber machinery: vulcanizing machine,
rubber mixer, broken plastic machine, rubber refiner, rubber
kneading machine, rubber injection molding machines, vacuum hot
press molding machine, hydraulic machine, rubber tableting machine,
jaw vulcanizing machine malfunction, pre-curing equipment,
hydraulic tire curing machine, automatic tube curing machine, foam
machine; conveyor belt production line, sidewall belt production
line, molding line conveyor; batch closed cooler (cold); cut
plastic machine;
(6) The company has import and export rights, the products are
exported to countries and regions in the United States, South
Korea, Japan, Thailand, Germany;
(7) 2012 was awarded the "AAA grade credit enterprise" and "integrity enterprises in Qingdao City," the title.
