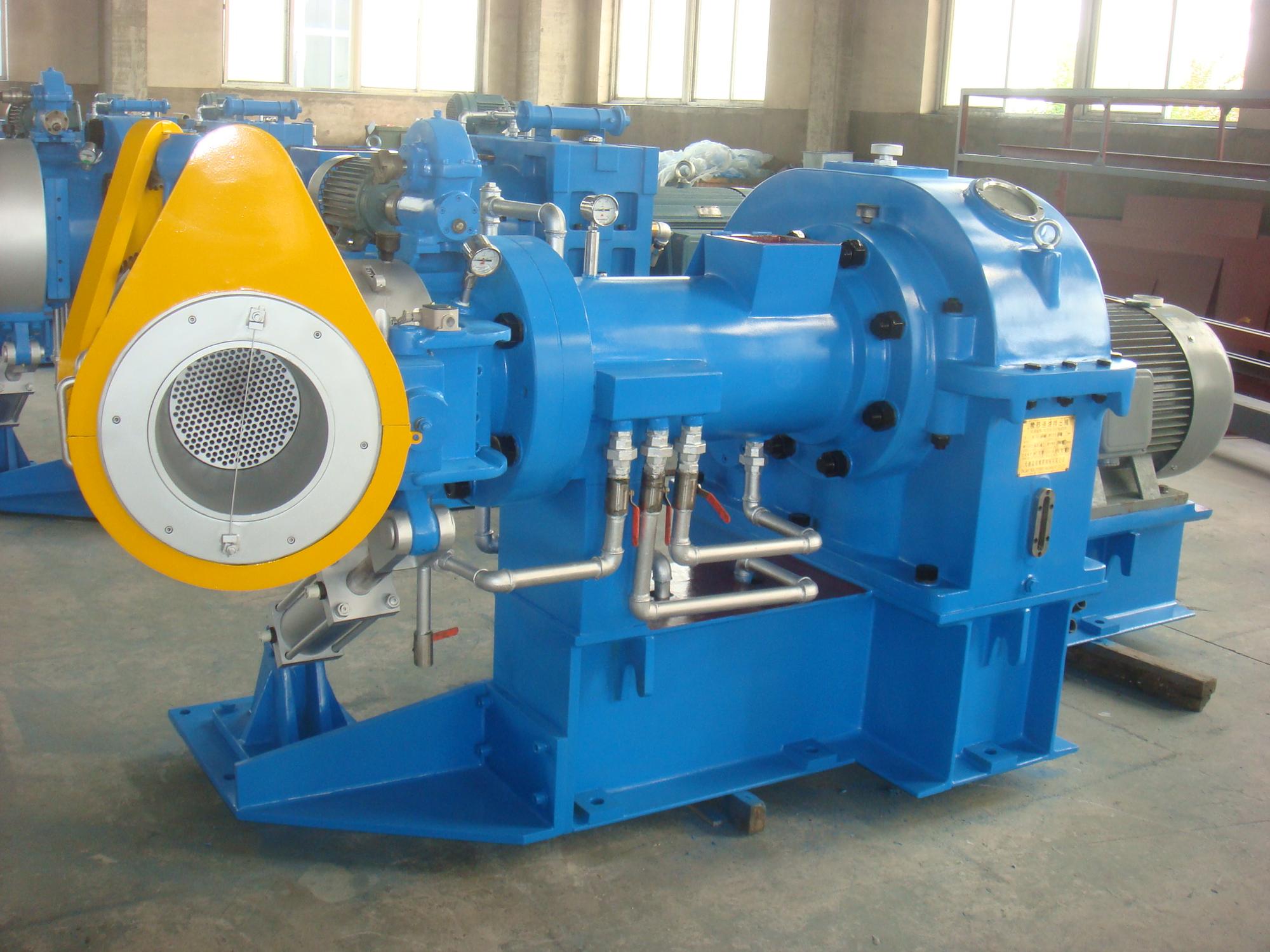

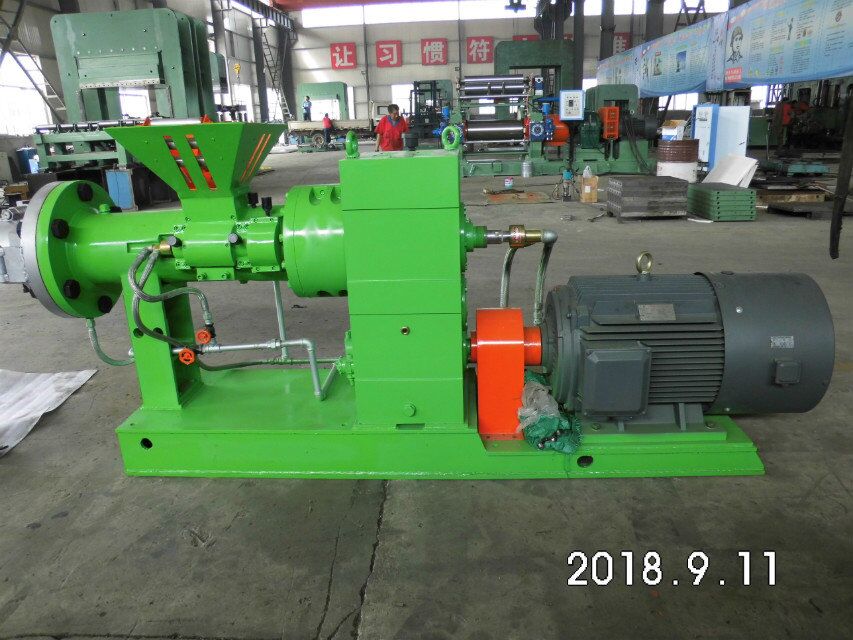

    90mm Screw Diameter Hot Feed Rubber Extruder for Rubber Product Extrusion Machine

    Ask Lasest Price
    Supply Ability : 200 Set/Sets per Month
    Price : $3,600.00 - $5,000.00/sets
    • Product Details
    • Company Profile

    90mm Screw Diameter Hot Feed Rubber Extruder for Rubber Product Extrusion Machine


    Type
    Performance index

    XJ-65

    XJ-85

    XJ-115

    XJ-150

    XJ-200

    XJ-250

    Screw thread type

    Double-head same depth converged type

    Double-head same distance varied depth converged type

    Double-head converged type

    Double-head varied depth converged type

    Double-head converged type

    Double-head converged type

    Outer diameter of screw mm

    65

    85

    115

    155

    200

    250

    Screw length-diameter ratio L/D

    4

    4.3

    4.8

    4.43

    4.35

    4.5

    Compression ratio

    1.3

    1.3

    1.34

    Screw rotated speed r/min

    20.27.35.47

    28.40.56.80

    33.46.60

    27-81

    22.4-67.2

    19.7-59.1

    Motor power kw

    7.5

    11/15

    22

    18.3-55 Commutator motor

    18.3-55 Commutator motor

    18.3-55 Commutator motor

    Production capacity kg/n

    50-80

    70-210

    100-420

    700-1200

    1500-2200

    2000-3200

    Steam pressure mpa

    0.2-0.3

    0.3-0.4

    0.4-0.6

    0.6

    0.6-0.8

    0.6-0.8

    Cold hydrodynamic pressure mps

    0.2-0.3

    0.2-0.3

    0.2-0.3

    0.2

    0.2-0.3

    0.2-0.3

    Compressed air pressure mpa

    0.3-0.6

    0.6

    Overall size (L×W×H)(mm)

    1630 ×604×1050

    2050 ×700×1200

    1630 ×604×1050

    3411 ×814×1470

    4564 ×1800×1750

    4950 ×1150×1483

    Product weight kg (not including machine head)

    1200

    2500

    3000

    5000

    8000

    11400


    For profiling of extruder, rubber covering of filter cable of rubber compound, rubber covering of press plate tinsel, etc.


    The machine is Hot-feed and single screw extruder. The rotation speed could be changed. With the headpiece changing, we can give different filtering and rubber covering of press plate of semi-product for contact outline, so the machine has many uses
