    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size

    Ask Lasest Price
    Brand Name : Huicai
    Supply Ability : 100 Set/Sets per Month
    Price : $110,000.00/sets >=1 sets
    • Product Details
    • Company Profile

    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size

    Product Overview

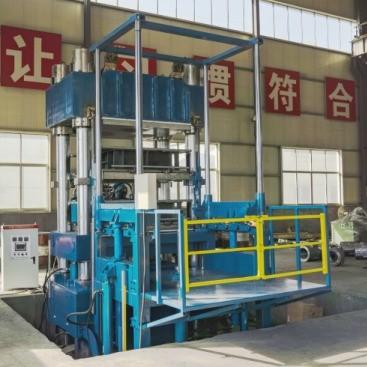

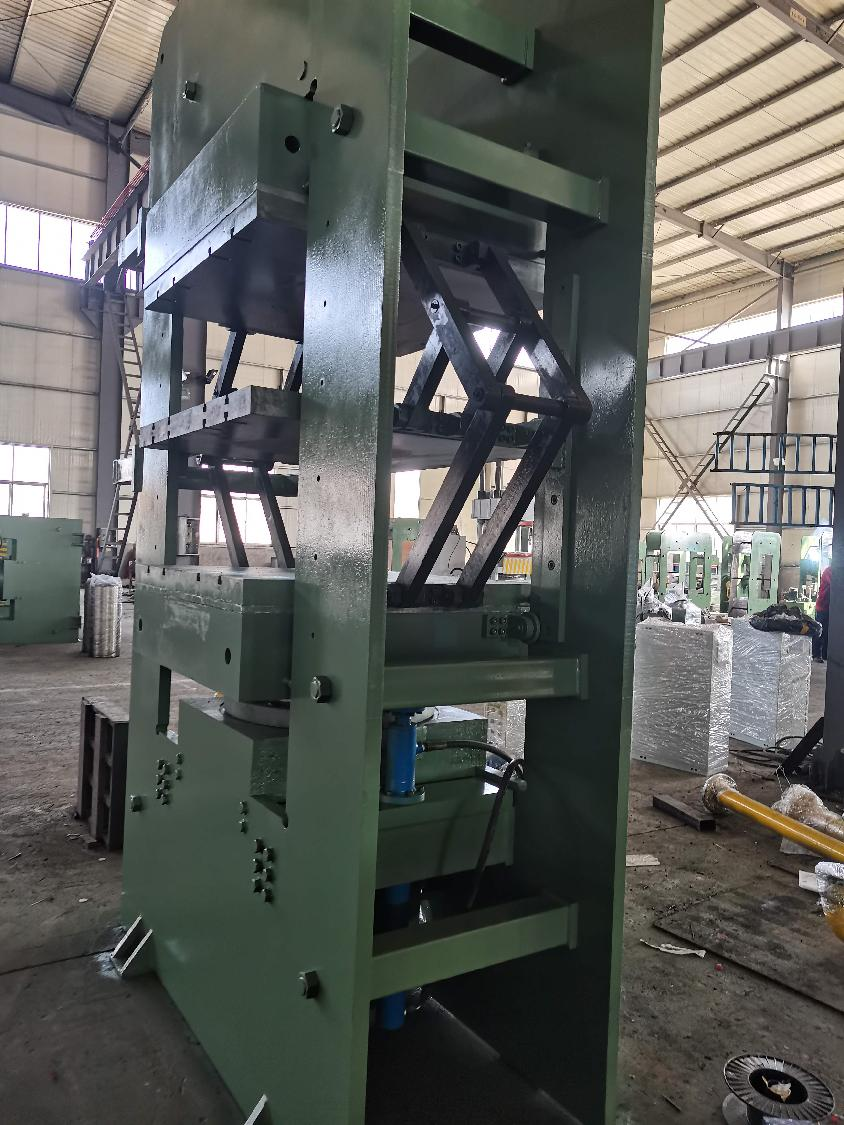

    SOLID TIRES PRESS

    Our company designed and developed the latest type of solid tire vulcanization machine, has been exported to Sri Lanka and other large customer factories, excellent working performance.
    FEATURES AT A GLANCE

    AUTOMATIC
    TEMPERATURE SAVING
    ENERGY SAVING
    COMPACT DIMENSIONS
    EXTENDING UNDERCARRIAGE
    SAFETY FRAME
    SIMPLE CONTROL
    EASY MAINTENANCE
    VERSATILITY
    EXTENDING UNDERCARRIAGE
    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size
    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size

    Forklift SOlid Tyre

    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size

    Solid OTR tyre

    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size

    Solid Skidsteer Tire

    PRODUCT SPECIFICATIONS
    TYPE
    550×550×3/
    2.00MN
    650×650×3/
    2.00MN
    800x800x3/
    3.0MN
    1000X1000X5/
    5.0MN
    Total pressure
    2.00MN
    2.00MN
    3.0MN
    5.0MN
    Hot platen
    550X550mm
    650X650mm
    800X800mm
    1000X1000mm
    Clearance
    350mm
    350mm
    400mm
    440mm
    Layers
    3
    3
    3
    5
    Cylinder Dia&No.
    1-Φ360
    1-Φ360
    1-Φ450
    1-Φ600
    Unit working pressure
    66.1kg/cm2
    47.3kg/cm2
    46.9kg/cm2
    50kg/cm2
    Piston stroke
    500mm
    500mm
    600mm
    900mm
    Max working pressure
    19.6MPa
    19.6Mpa
    19.6MPa
    17.7MPa
    Heating manner
    Electric
    Electric
    Electric
    Electric
    Open close speed
    ≥15mm
    ≥15mm
    ≥35mm/s
    ≥35mm/s
    Highest temperature
    200℃
    200℃
    200℃
    200℃
    Structure
    Slab Side(Three stations)
    Frame/column
    Frame/column
    Rubber Solid Tyre
    Size & O.D
    200*8 301mm
    4.00-8 396mm
    15*4.5-8 370mm
    15*6.5-8 377mm
    4.00-8 400mm
    5.00-8 455mm
    16*6-8 404mm
    18*7-8 440mm
    6.00-9 515mm
    7.00-9 536mm
    21*8-9 505mm
    200/50-10 441mm
    23*9-10 561mm
    6.50-10 566mm
    23*10-12 586mm
    7.00-12 643mm
    TYPE
    1250x1250x3 / 7.00MN
    1200X1200X3/
    7.5MN
    1300X1300X3/
    8.0MN
    1500x1500x1/
    10.5MN
    2000x2000x1/
    18.00MN
    Total pressure
    7.00MN
    7.5MN
    8.0MN
    10.5MN
    18.0MN
    Hot platen
    1250X1250 mm
    1200X1200mm
    1300X1300mm
    1500X1500mm
    2000X2000mm
    Clearance
    460mm
    400mm
    460mm
    460mm
    460mm
    Layers
    3
    3
    3
    1
    1
    Cylinder Dia&No.
    1-Φ680mm
    1-Φ750
    1-Φ750mm
    1-Φ850mm
    2-Φ800mm
    Unit working pressure
    44.8kgf/cm2
    52.1kgf/cm²
    47.3kgf/cm2
    46.7kgf/cm2
    50.0kgf/cm2
    Piston stroke
    560mm
    550mm
    560mm
    560mm
    560mm
    Max working pressure
    19.3MPa
    17MPa
    19.3MPa
    19.3MPa
    19.3MPa
    Heating manner
    Electric
    Steam
    Electric
    Electric
    Electric
    Open close speed
    ≥35mm/s
    ≥35mm/s
    ≥35mm/s
    ≥35mm/s
    ≥35mm/s
    Highest temperature
    200℃
    180-230℃
    180-230℃
    180-230℃
    180-230℃
    Structure
    Frame/column
    Frame/column
    Frame/column
    Frame/column
    Frame/column
    Rubber Solid Tyre
    Size & O.D
    27*10-12 661mm
    8.25-12 696mm
    28*9-15 8.15-15 691mm
    250-15 693mm
    7.00-15 711mm
    7.50-15 752mm
    8.25-15 810mm
    300-15 788mm
    355/65-15 823mm
    8.25-20 933mm
    9.00-20 948mm
    10.00-20 1038mm
    11.00-20 1038mm
    12.00-20 1086mm
    SALES AND SERVICE NETWORK
    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size
    Successful Project
    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size
    Project in Sri Lanka
    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size
    Project in India
    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size
    Project in China
    SIMILAR PRODUCTS
    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size
    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size
    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size
    Company Profile
    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size
    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size
    Rubber Solid OTR Tyre Hot Press Machine for Vulcanizing Molding 2600*1800*5800mm Size
    FAQ
    1. We have specialized in machine manufacture almost 20 years;(since 1996)
    2.100% real manufacture meet all your requests;
    3.CE,ISO Certification;
    4.provide one year quality guarantee and long-term technical support;
    5.provide all kinds of rubber machine:
    Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber
    injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt
    vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor
    belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutter
    etc;
    6.our machine are welcome by the world,popular in lots of markets
