115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001

    Buy cheap 115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001 from wholesalers

    Buy cheap 115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001 from wholesalers
    • Buy cheap 115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001 from wholesalers
    • Buy cheap 115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001 from wholesalers
    • Buy cheap 115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001 from wholesalers
    • Buy cheap 115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001 from wholesalers
    • Buy cheap 115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001 from wholesalers

    115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001

    Ask Lasest Price
    Brand Name : HUICAI
    Certification : CE,ISO9001
    Supply Ability : 100 Set/Sets per Month
    Price : $1,000.00 - $60,000.00/sets
    • Product Details
    • Company Profile

    115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001

    Customize OEM/ODM SERVICE

    WELCOME TO OUR FACTORY VISIT AND NEGOTIATION

    115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001

    XZB series rubber injection molding machine is mainly used for all kinds of rubber, bakelite, plastic materials, and other products of the injection and pressure molding, it is especially suitable for high quality requirements, complex shape, thick wall and embedded parts products forming.

    Polygin, polyhedron, and other complicated products, Especially in sports, medical,
    automobile, and electrical applications.
    Suitable for
    Rubber injection molding machine:
    Nature rubber
    Rubber of metal boned parts
    Oil resistance rubber
    NBR+PVC concoction
    Synthetic rubber
    Medical/pharmaceutical usage rubber
    Heat resistance rubber


    XZL-series four column rubber injection machine


    115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001


    Huacheng XZL series four column rubbe injecion machine uses Gemany technology of injection machine.It has high effciency,high quality,high precision features.Compared with foreign similar machines,the most advantage of our machine is that it has good performance-price ratio.It sells well not only in domestic market but also at abroad.

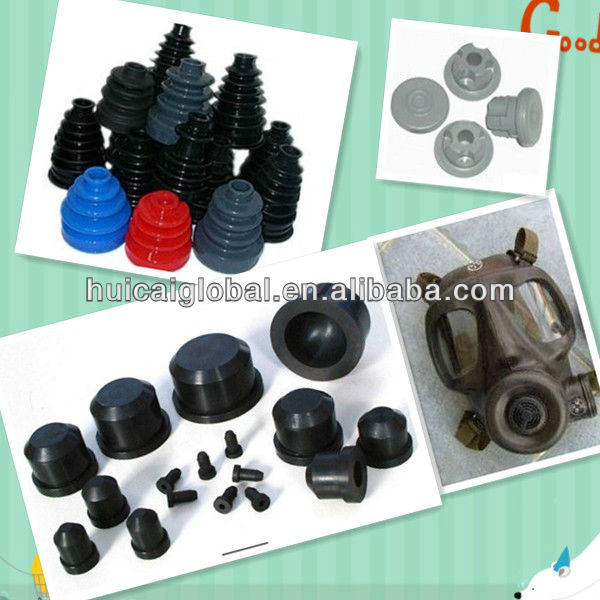

    XZL series rubber injection machine is used to produce auto spare parts,industral spare parts,electric appliances insulated spare parts,sealing washer,antivibration pad,toy and bodybuilding rubber parts,etc.It has short production time,good quality,stable physicomechanical character and precister and precise dimension.It is especially good for producing rubber products of complicated shape,thick wall or with embedded parts.


    Features:


    The first plasticized rubber materal goes into the mold cylinder first during injection,which means First In First Out(FIFO).This saves production time.


    Provide big work table


    Imported double-proportinal trunk pistion oil pump can do any actions without impact


    Save 25-50% motor energy cost


    Use Germany electronic ruler to measure the injection,ensure the precision


    Three sections of injection pressure,flow and pressure holding satisfy any products’ technological requirements


    PLC programmable controller and touch screen make it easy to set up ,view and save Technological parameters.It can also supervise the whole producing,auto diagnose inner fault And give an alarm


    Protect with safe light curtain


    Precisely fix mold in and out position


    Control materal temperature


    Temperature control precision is between ±1°C


    115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001

    115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001

    115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001

    115Mpa Rubber Injection Vulcanizing Press Molding Machine with CE ISO9001


    ModelXZB-630XZB-1000BXZB-1000AXZB-1600XZB-2000XZB-3500
    Mold-locking force (KN)63010001000160020003500
    Injection pressure (Mpa)90100110110100115
    Material tank size (mm)Φ70*250Φ80*220Φ80*255Φ80*255Φ90*300Φ110*385
    Block stroke (mm)300300300300300350
    Inject and press stroke (mm)360350380380450585
    Thermo-plate size (mm)440*480440*480520*540520*540550*600680*750
    Max. distance of thermo-plate (mm)300-400270-400190-480200-480180-480350-600
    Motor power (KW)44+2.24+2.24+2.25.5+37.5+5.5

    we also can design in accordance with your demand customization parameters


    We are professional manufacturer of machinery


    About us--

    Qingdao HUICAI Machine Manufacture Co., LTD.


    1. has specialized in machine manufacture almost 20 years;(since 1996)

    2.100% real manufacture meet all your requests;

    3.CE,ISO Certification;

    4.provide one year quality guarantee and long-term technical support;

    5.provide all kinds of rubber machine:

    Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutter etc;
