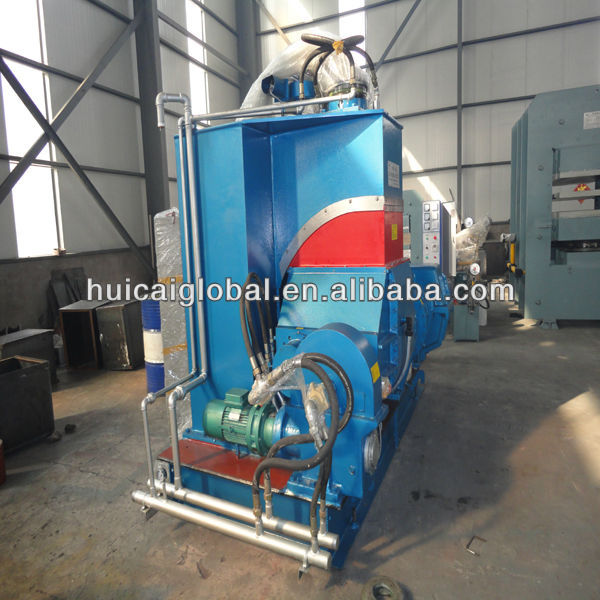

This rubber kneader machine is a type of dispersion kneader, consist of pneumatic control system, electric control system, tilting mechanism, mixing chamber, main driving system, dust sealing device, thermal resistance, rotor and cooling/heating system. You can choose the right model according to your needs.
Easy operation with convenient maintenance.
Low labor intensity and low energy consumption.

The series of rubber kneader machines are main used for molding and mixing the materials of natural rubber, synthetic rubber, recycled rubber or plastic, or blending rubber and plastic. They are also suitable for mixing a variety of low viscosity materials.

It is used widely in sealed fittings factory, rubber and plastic products factory, also applies to blend in paints, dyes, ceramics, medicine, tapes, movie film line etc..

This machine is the best new-type mixing equipment in rubber and plastics industry. The performance indicators are at or near advanced level of similar products in domestic and abroad.

1.Rubber tires , tire plant,
2.Cable plant,
3.Rubber product for automobile,sealed fittings factory (oil seal, body seal, gasket, belt, hose, tube and etc)
4.Electric wires,cable plant (rubber, plastic and wire harness and etc)
5.Adhesive tape & hose factory,
6.Rubber shoes factory,
7.Belt (power transmission belt, conveyor belt and etc)
8.Roll (rubber, plastic, printing, copying machine and etc)
9.Rubber product for medical (plug, cap, glove, dental and etc)
10.Sporting goods (golf ball, athletic balls and etc)
11.Food (chewing gum)
12.Manufacture of abrasives
13.Graphite compounds
14.Sealing compounds
15.Hard metal compounds

1. With completely sealed condition, materials are mixed or plasticized under certain pressure, which makes high production efficiency and obtains excellent stable quality.

2. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be dispersed uniformly.

3. Surface where is contracted with the machine are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant.

4. Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam-heating effect and fit in with the needs of plastics and rubber processing technology.

5. Feeding from back door on the frame(or separate top door) is convenient of continuous process operation in production line. The mixing chamber is able to turn forward by 140 around the front rotors to discharge.

6. Easy color changing, Easy installation, operation and maintenance to lower the running cost.

7.Energy saving. the capacity is 6~8 times compared with open mill under the same condition of power level.

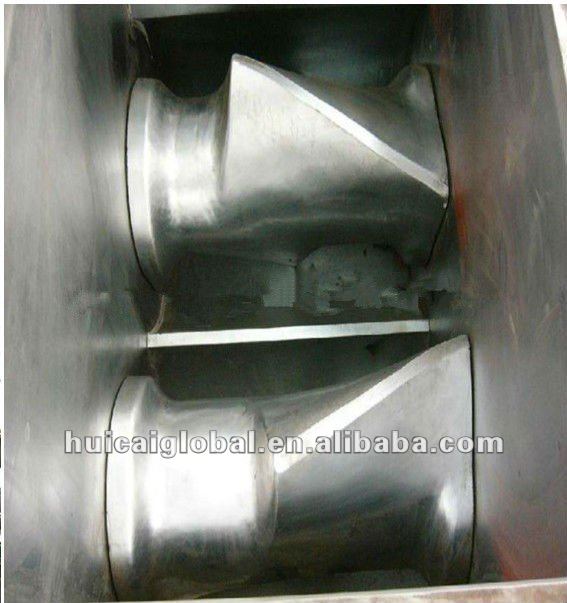

8.The rotors adopts 42CrMo material, and surface chrome plated(thickness +0.1-0.15mm), the surface is very hard HRC52. The rotors are hollow structure, for good water cooling effect.

9.The mixing chamber adopts cast steel or soud alloy steel, inside is chrome plated and polish to mirror effect. the working surface is coated with hard chromium for supper anti-abrasion.

10.Adopts international famous brand electronics and rogrammable logic controller (PLC) is adopted in the electric-control system. which has reliable control function and alarm function.All electronics and wires are well designed and rational arrayed. interlock safety-protection function and it is provided with serial interface of net.

11.This equipment possesses temperature and time control system. Accurate and easy to operate. Mixed refine operation could achieve the best result of dispersion and uniformity.

Qingdao Huicai Machinery Manufacturing Co., Ltd

has over ten years' history in manufacturing rubber machinery.

We are a specialized manufacturer integrating the research and manufacture of various specifications of plate presses, rubber mixing mills, rubber machinery and tire making machinery.

1. Has specialized in machine manufacture almost 20 years;(since 1996)

2.100% real manufacture meet all your requests;

3.CE,ISO Certification;

4.Provide one year quality guarantee and long-term technical support;

5.Provide all kinds of rubber machine:

Vulcanizing machine, Rubber mixing mill, rubber crushing mill, Rubber refining mill, Rubber plastices kneading machine, Rubber injection&pressure molding machine, Vaccum heat presses to model the machine, Hydraulic press, Rubber sheeting mill, Jaw type flat vulcanizer, Pre-vulcanizing equipment, Hydraulic tyre vulcanizer, Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutter etc;

6.Our machine are welcome by the world,popular in lots of markets

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
