Structure Features:

1, Mixing chanber
It consists of a"W" shape bady and two side boards made of high quality steelplates by means of extrusion forming and welding,which are jacked to take the flow of cooling water or steam.It si plated with hard chrome on its internal walls.

2,Thermal Resistance
There is aplug-in thermal resisitance in middle section of the bottom of chamber to be connected to electrical system to inspect and display the temperate.

3,Rotor
It is designed to the hollow blades lf Banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage.The top edges of blades and the end faces of~rotor shaft are surface welded with cobalt-base hard alloy and grinding,then plating with hard chrome and polishing.

4,Cooling/heating system
A common piping system is adopted for either cooling or heating material in mixing operating.Through the system cooling water or steam is fed in three ways to the cavities of the rotors blades,-the jackets the mixing chamber and the top ram.

5, Tilting mechanism
It consists of a rotor with brake,cycloidal gear reducer,TP tyoe worm and worm gear, etc.It is able actuate mixing chamber tilting by 140° aroung the front rotors.

6,Dust-proof seal
(the national utility model patents-patents,ZL200720016920.8) Mixing room with the missing cantilever rack interface using curved trough structure of the board, effective dust.Rotor shaft are symmetrical labyrinth seal the installation of devices,each of the labyrinth seal by the convex sets lf components.Unique structture,without sealing material used, both good sealing performance without polluting the environment,but also easy to maintain,long service life,etc.

7, Main driving system
The part is made up with main motor,reducer,connecting gears.It realizes odd-speed rotation of the rotors with running face one other.

8, Pnenumatic control system
Pneumatic control system is controlled by PLC order.A bi-directional air cylinder make the ram up or duwn.In case the over load occurs in the mixing chamber, the top ram can be raised automatically or manually if necessary, so as to protect motor from overload.

9, Electric control system
Imported PLCdevice and electric control components which are all imported products or importanted technology products are adopted in the elctric control system as to raise control reliability.

Technical Parameters:

Machine Picture Show:

* Within 25days after receiving the deposit

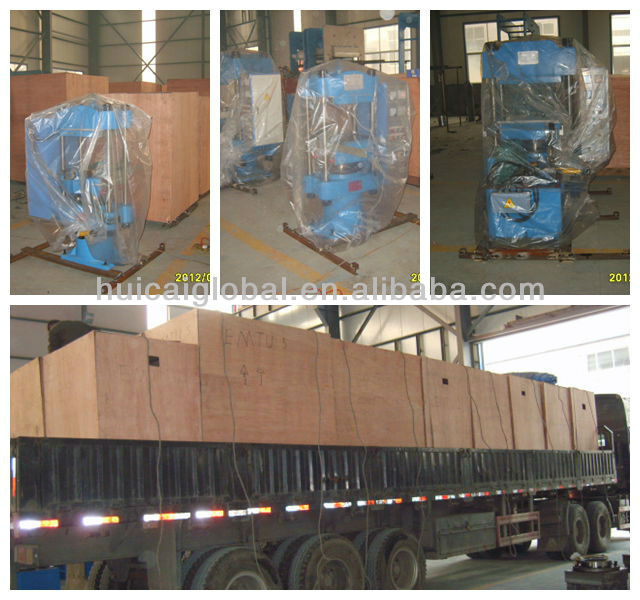

* wooden casesAccording to the needs of clients

Trade Terms:

1.Delivery time: About 50days after receive your payment.

2.Payment terms: Prepay 30%,pay the balance(70%) before shipment.

3.Warranty: One year.

Qingdao HUICAI Machine Manufacture Co., Ltd. was founded in October 1996, we are the professional manufacturer to

produce various specifications set fabric core and steel cord conveyor belt rubber machine , flat vulcanizing machine series,

open mixing mill and other rubber machinery and tire machinery. After ten years of exploration and innovation, we establish

the independent research and development, processing, testing, assembly and aftersales service quality assurance system.

We always adhere to rely on technological innovation, marketoriented, with strong technical force, advanced manufacturing

technology innovation,improved detection methods and firstclass service, so to create a series of flat vulcanizing machine,

open mixing mill other products in the same industry enjoys a high reputation, popular throughout the country.

The company has import and export right, the products are exported to the United States, Korea, Japan, Thailand, Germany

and other developed countries and regions.

2012 was awarded the "National AAA grade credit enterprise", "Qingdao integrity enterprises".

We always adhere to peopleoriented, scientific development, the times, the era of independent innovation philosophy: quality of survival, reputation and development, honest pragmatism, mutual benefit and win business philosophy, we sincerely welcome domestic and foreign businessmen to discuss the guidance, joint development, create brilliant. Invite people to join HUICAI, build a cause. God reward those who work hard, and hold world with virtue is HUICAI eternal pursuit!

1.We are the 24 hours service of the internet and telephone . If you have any question we can reply in the first time . And have a good after-sales service.

2.Quality warranty period: One year warranty for the main reactor of pyrolysis machines and lifetime maintenance for

complete set of machines.

3.Our company sends engineers for installation and commissioning in buyer's site including the training of skills of the

buyer's workers on operation, maintenance, etc.

Our company always contact with overseas customers .
