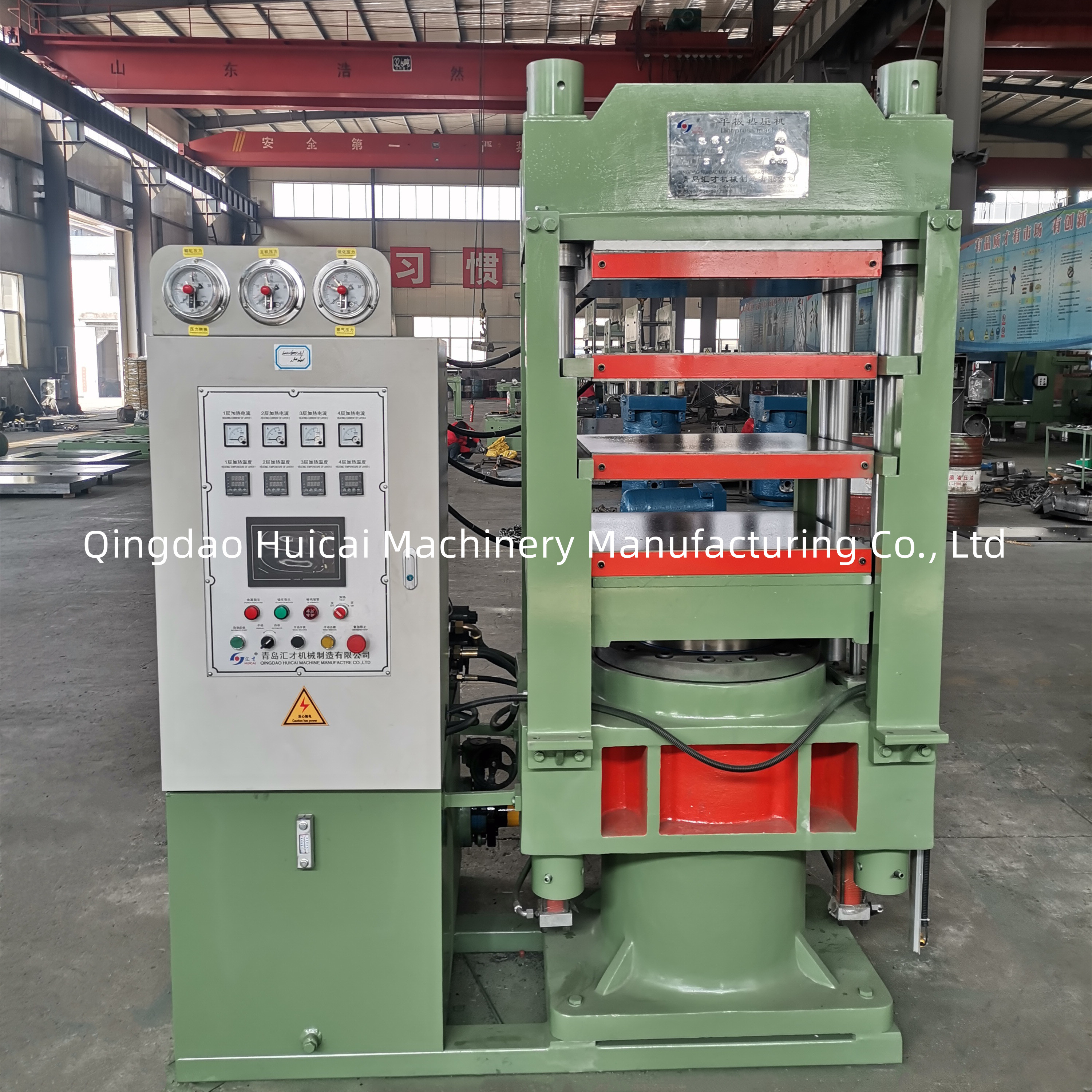

    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    Ask Lasest Price
    Brand Name : Huicai
    Supply Ability : 120 Set/Sets per Month
    Price : $40,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    型号Mode
    XLB-500*500/100MN
    XLB-600*550/2.00MN
    XLB-800*640/2.5MN
    XLB-640*700/3.5MN
    最大宽度 Maximum width
    500*500(mm)
    600*550(mm)
    800*640(mm)
    640*700(mm)
    最大行程 Maximum stroke
    250(mm)
    350(mm)
    400(mm)
    400(mm)
    公称合模力 Total Pressure
    1.00(MN)
    2.00(MN)
    2.50 (MN)
    3.50(MN)
    电机功率 Motor power
    3(KW)
    5.5(KW)
    5.5(KW)
    7.5(KW)
    外形尺寸 Overall size
    1550*1550*1650(mm)
    1800*1800*1800(mm)
    2200*1100*2500(mm)
    1900*1900*2000(mm)
    重量 Weight
    约2400(kg)
    约3500(kg)
    约5800(kg)
    约7600(kg)
    Machine Show
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    Column

    Using high-quality carbon steel Q235.
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    Oil Cylinder

    The material is QT500 or ZG270-500 or 45# steel .Use QT500 quality castings, can withstand 20MPa or more.
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    Push and Pull Device

    Improve work efficiency, optional
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    Auxiliary Cylinder

    The auxiliary cylinder can make the speed up,and can be high working efficiency.
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    Hydraulic Unit

    Hydraulic system is equipped with low-pressure pump and high-pressure pump. Used by the US company 116/237. The system has safety pressure limiting devices.
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    Motor

    The brand is kaiyuan or Siemens, which is famous and outstanding in motor making.
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    Hot Plate

    Use 45#steel which after double scale rolling and normalizing and processing, every platen has 2 heating zones, each heating zone using a temperature measurement points.
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    Insulation Board

    Insulation materials can be divided into resin,carbon fiber,Ultra-light calcium silicate and so on.
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    Double Sealings

    Seal structure uses imported dual channel o-ring, and increase a dust-proof to ensure that long-term and no leaking oil.
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    Piston

    The material is alloy chilled cast iron, which ensures long-term use.
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    PLC

    The brand is Siemens,Taida or Mitsubishi.Electronic control system is by PLC programmable controller, HMI, control cabinets and other components.
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    Electricity Box

    The main parts from zhengtai brand,and we can offer Schneider if you need.
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine
    Certifications
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

    Our Service

    Why choose our company?
    Qingdao Huicai Machinery Manufacturing Co., Ltd. is an export-oriented enterprise based on Qingdao Jiaonan Huicai Rubber Machinery Factory. Founded in October 1996, we have over ten years' history in manufacturing rubber machinery. We can provide all technical support, best after-sell service for all you require.
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine
    1) AAA grade credit enterprise and Ce and ISO 9001

    2) With 14 years experience in manufacturing rubber machines has become one of the biggest company in China.

    3) Exported to more than 20 contries with good quality. Example: The good year company in Chile.

    Management Concept: Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision.
    Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation.
    Work Concept: Hardworking Practical, Conscientious and Meticulous.

    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine
    Packing & Delivery
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine
    Customer visting and acceptance:
    Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine
