500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results

Qingdao Huicai Machine Manufacture Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results from wholesalers

    Buy cheap 500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results from wholesalers
    • Buy cheap 500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results from wholesalers
    • Buy cheap 500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results from wholesalers
    • Buy cheap 500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results from wholesalers
    • Buy cheap 500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results from wholesalers
    • Buy cheap 500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results from wholesalers
    • Buy cheap 500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results from wholesalers

    500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results

    Ask Lasest Price
    Brand Name : HUICAI
    Certification : CE/ISO9001
    Supply Ability : 100 Set/Sets per Month
    Price : $50,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

    500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results

    Product Description
    Technical Parameter
    Type
    XLB-D(Y)1000*1000*1
    XLB-D(Y)1200*1200*1
    XLB-D(Y)1500*1500*1
    Nominal molding power
    1.60-2.00MN
    3.15MN
    4.00-5.00MN
    Working layer number
    1
    1
    1
    Piston stroke
    250-500mm
    250-500mm
    250-500mm
    Main motor power
    3.0kW
    3.0kW
    3.0kW
    Plate clearance
    125-500mm
    125-500mm
    125-500mm
    Heating method
    Steam,ecectricity
    Steam,ecectricity
    Steam,ecectricity
    Configuration
    Frame
    Frame
    Frame
    Electric pipr heating power
    12kW
    15.6kW
    27kW

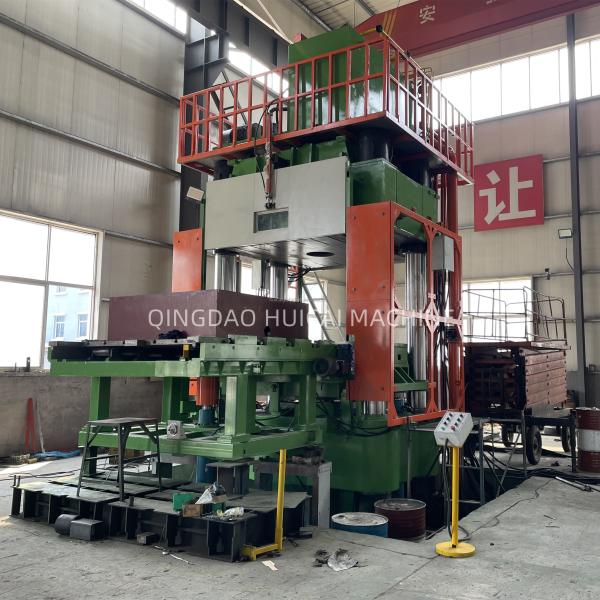

    Machine Show


    HYDRAULIC PRESS RUBBER MAT PRESS MACHINE

    500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results

    MAIN FRAME:

    Using high-quality carbon steel plate Q235, welding forming structure. After eliminating stress, into the whole process.

    500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results

    OIL CYLINDER:

    The material is QT500 or ZG270-500 or 45# steel .Use QT500 quality castings, can withstand 20MPa or more.

    500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results

    PUSH-PULL MOLD DEVICE:

    This type can be divided into link chain,steel wire and air-operated three types.

    500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results

    GUIDE RAIL:

    A groove or Ridge, made of metal or other materials, that can withstand, fix, guide and reduce friction in a moving device.

    500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results

    AUXILIARY CYLINDER:

    The auxiliary cylinder can make the speed up,and can be high working efficiecy.

    500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results

    HYDRAULIC UNIT:

    Hydraulic system is equipped with low-pressure pump and high-pressure pump. Used by the US company 116/237. The system has safety pressure limiting devices.

    500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results
    500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results
    500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results
    500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results
    500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results

    We can according to all your requirements , design your suitable machine


    ♥ If you are interested in our products, please contact me ♥

    Company Informations
    500mm-750mm Piston Stroke Rubber Vulcanizing Machine for Smooth Operation and Results

    (1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in 1996;
    (2) 100% of the factory, to meet all your requirements;
    (3) CE, ISO9001 certification;
    (4) one-year warranty and long-term technical support;
    (5)Our company owned 2 process workershop,2 assembly workershop and total 40,000 squre meters.
    (6)Our registered fund is USD 30,0000.00.
